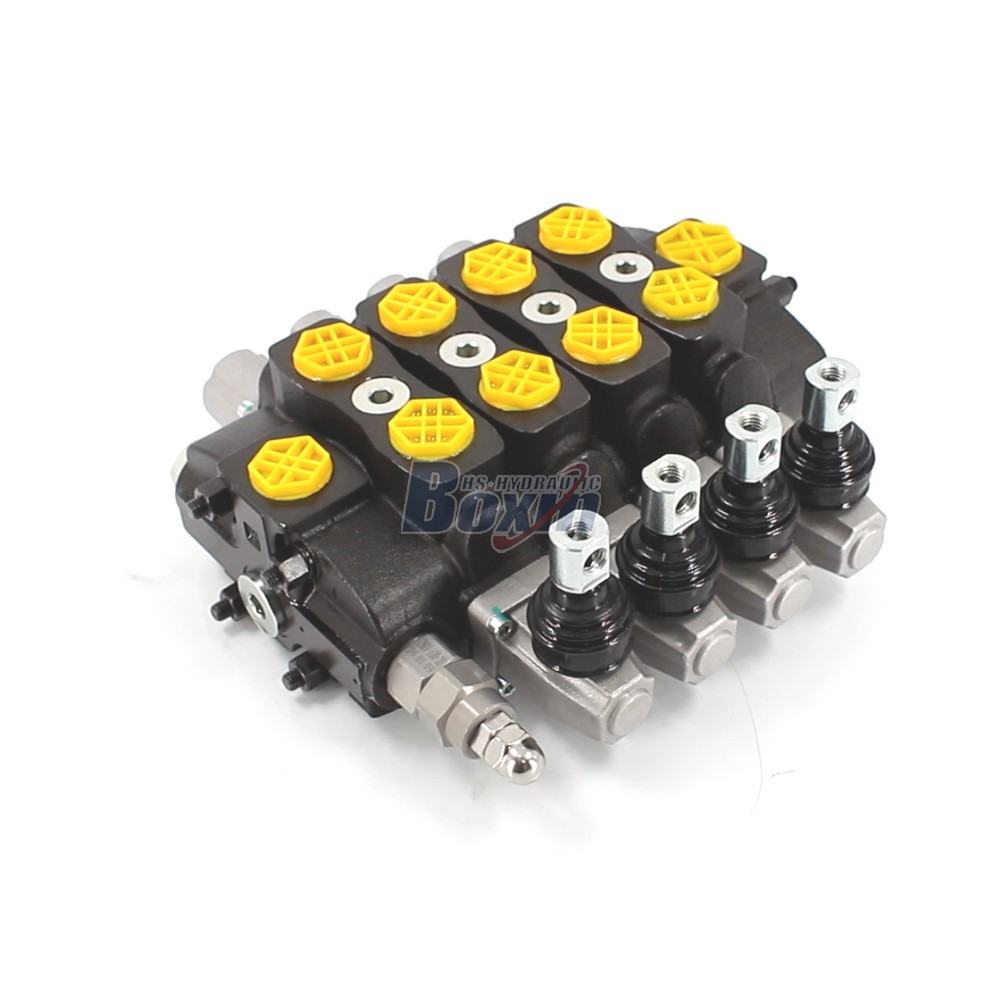

Wholesale SD8 Manual 4 Spool Sectional Directional Valve from Factory

Metode Kontrol:Buku Panduan

Spul:4 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:32*36*16

Kelas kotor:18.00 kg

Ketersediaan: Tersedia

107 Pandangan Mencari Produk Ini

Wholesale SD8 Manual 4 Spool Sectional Directional Valve from Factory

Wholesale SD8 Manual 4 Spool Sectional Directional Valve from Factory

Wholesale SD8 Manual 4 Spool Sectional Directional Valve from Factory drawing image

High-performance SD8 series 4-spool manual sectional directional valve, designed for 80 L/min flow and 315 bar pressure, ideal for demanding agricultural and construction machinery applications.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, SAE 10
Port Keluar G1/2, G3/4, SAE 10, 3/4 NPT
Ukuran Port G1/2, SAE 10

As a prominent hydraulic manufacturer, we offer the SD8 series manual 4-spool sectional directional valve engineered for precision and durability. This versatile valve supports a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 315 bar (4600 psi), featuring G1/2 inlet and G3/4 outlet ports. Our factory specializes in large-scale production, providing extensive opportunities for OEM, ODM, and private labeling (branding) to meet specific technical requirements. The SD8 series is widely applied in forklifts, skid steer loaders, mini-excavators, and wood splitters across the material handling and agricultural sectors. We are actively seeking global partners, including distributors, wholesalers, and international traders, to expand our market reach. Benefit from factory-direct wholesale pricing, reliable supply chains, and customizable hydraulic solutions. Our manufacturing excellence ensures consistent quality for heavy-duty industrial vehicles and specialized machinery manufacturers worldwide.
