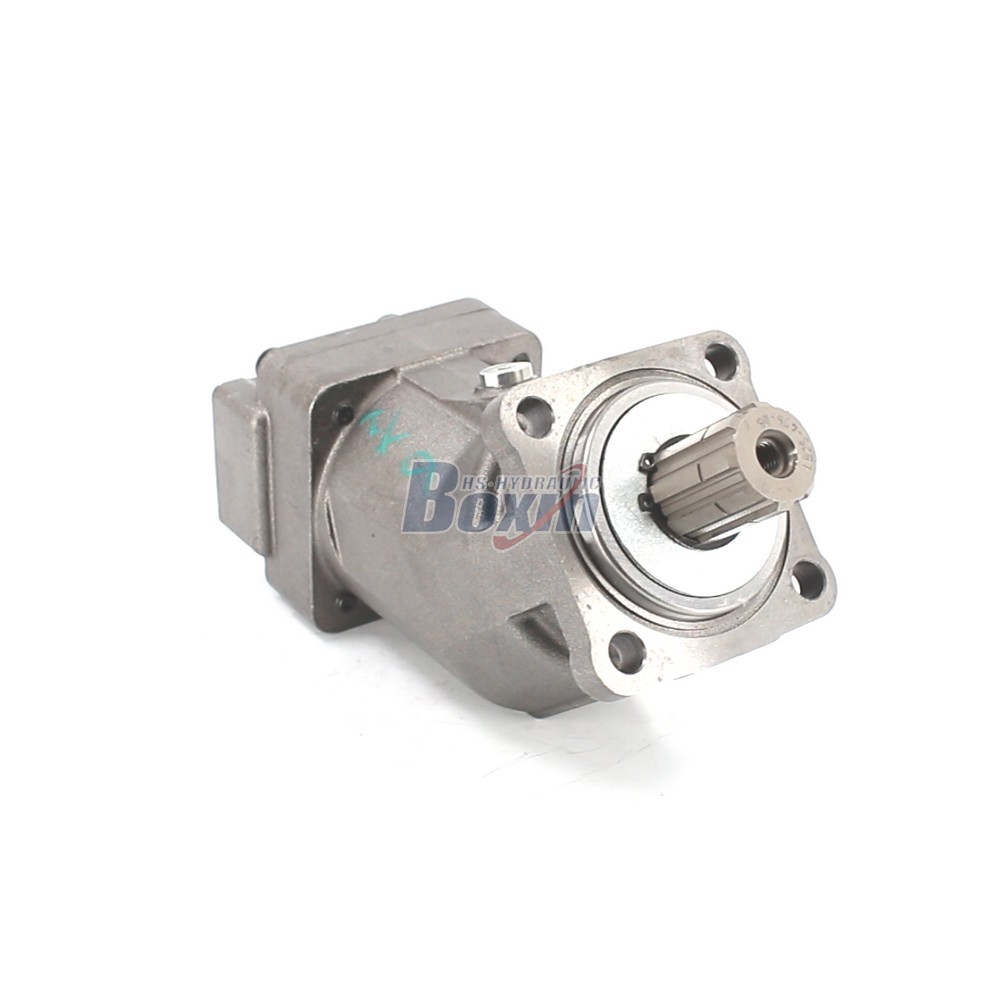

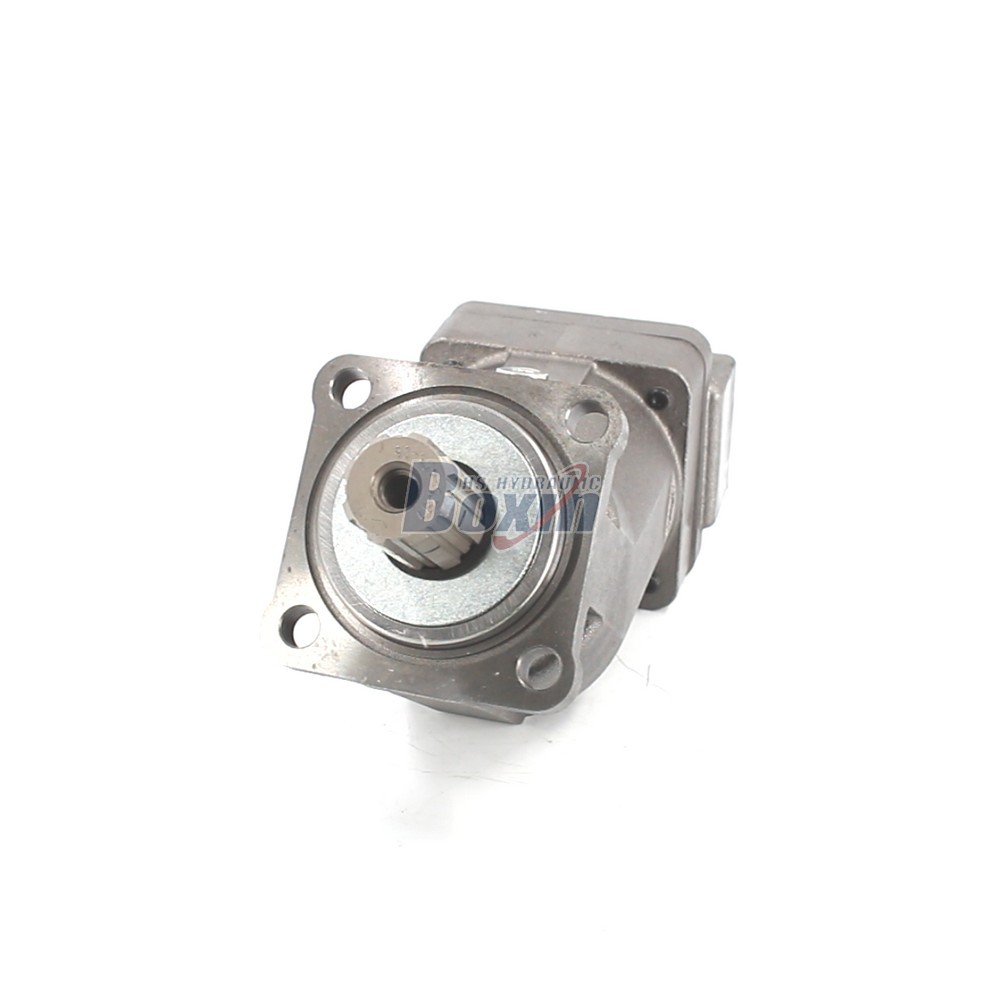

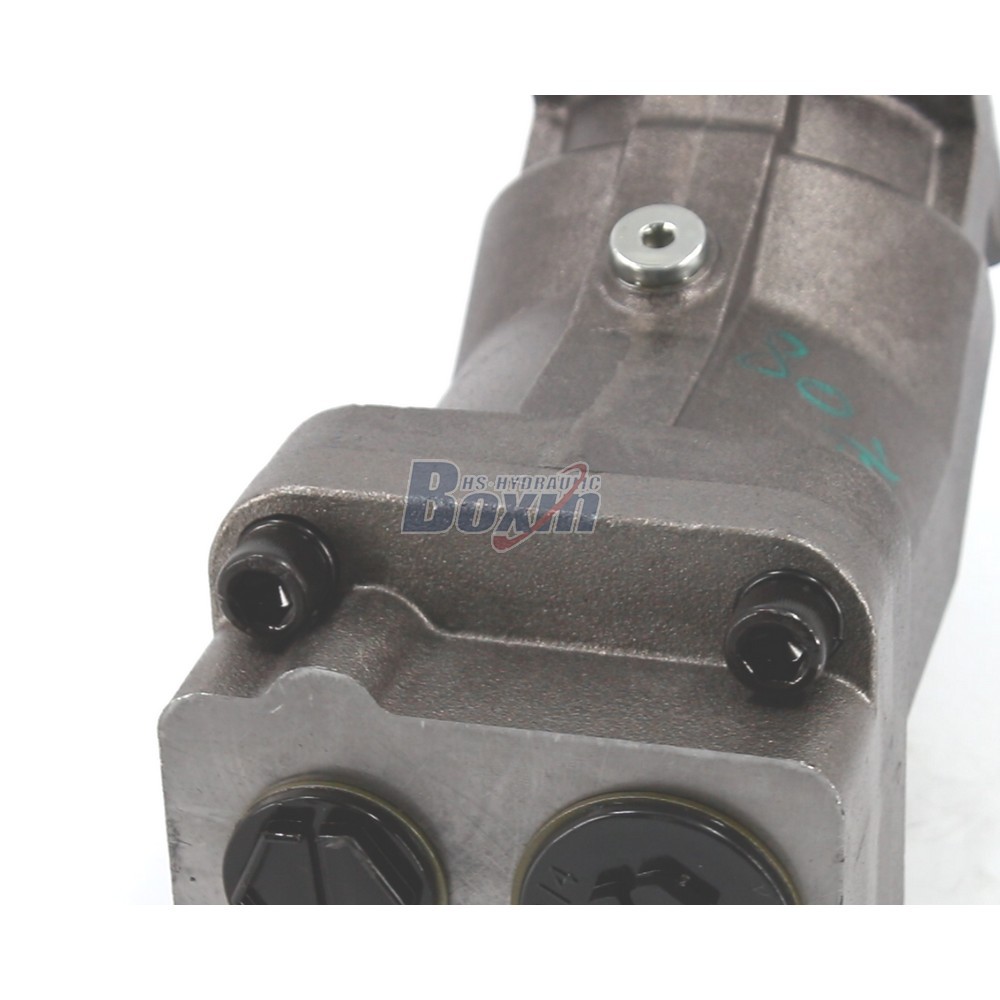

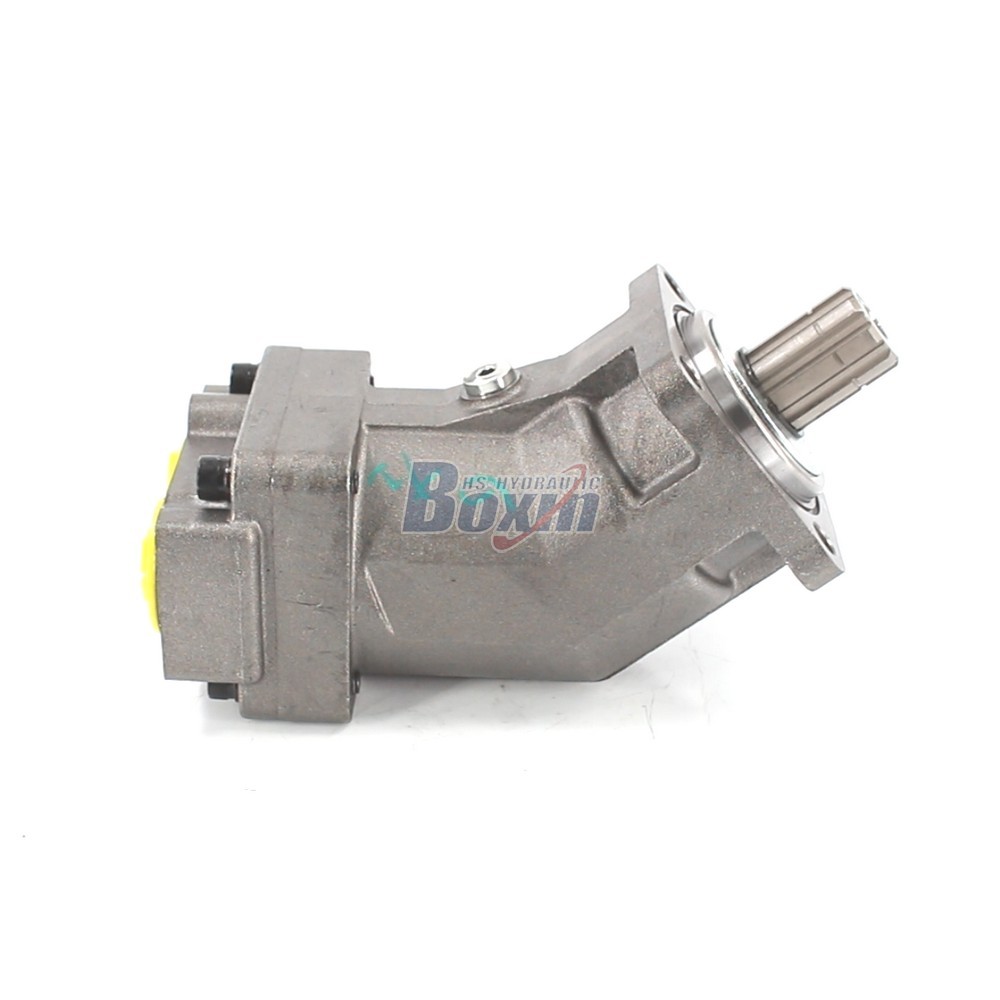

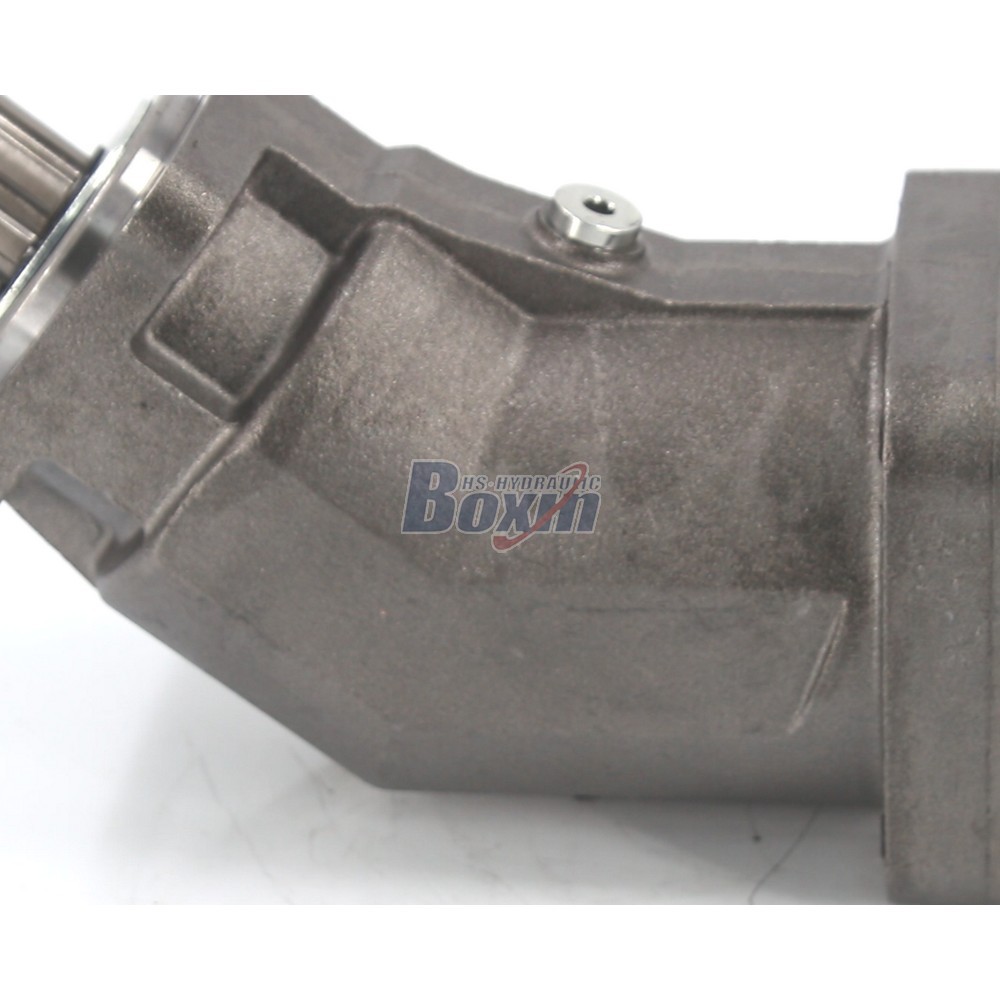

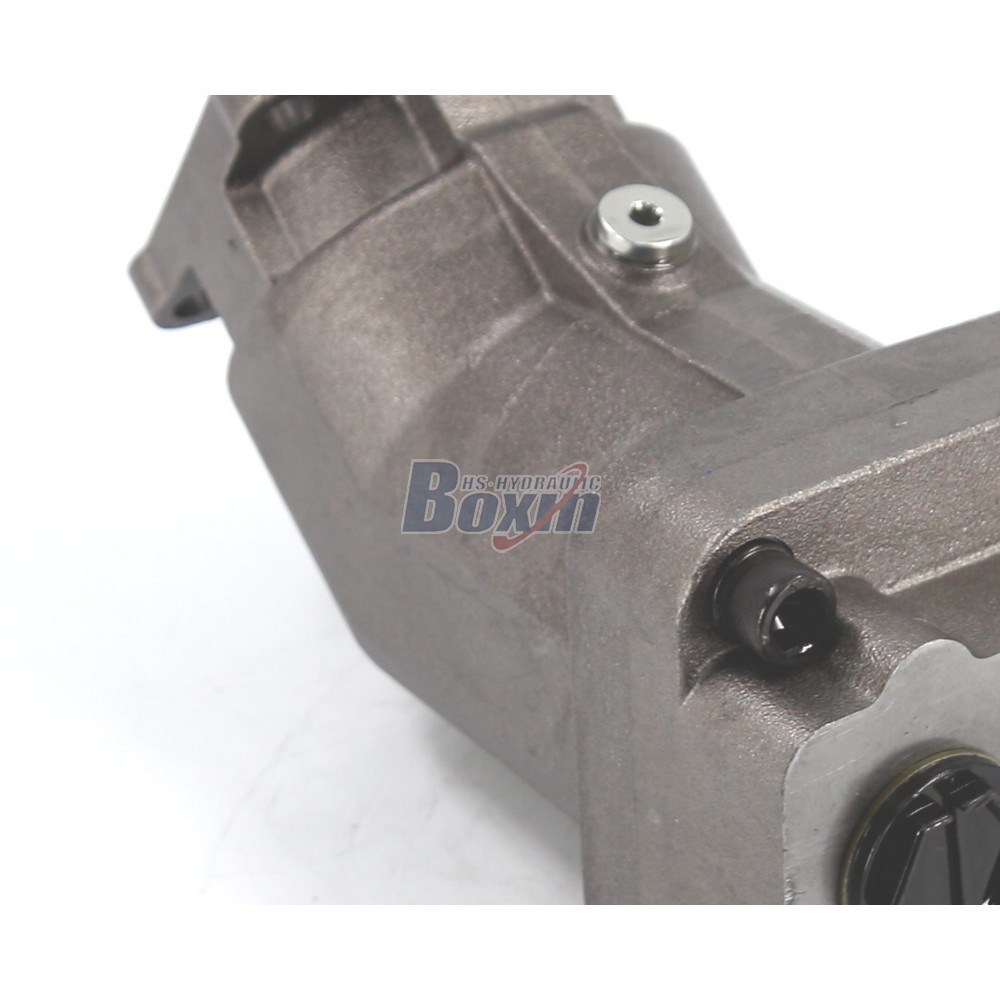

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems

Perpindahan:108 cc/putaran

Tekanan Terukur:38 MPa (5511 psi)

Tekanan Maksimum:42 MPa (6091 psi)

Kecepatan Maksimum:1900 r/mnt

Putaran:L: Kiri (berlawanan arah jarum jam)

Merek:BXHS

Tipe Produk:Pompa Piston Hidrolik

Seri Produk:Seri XPI Pompa Piston Hidrolik

Ukuran kemasan:37*17*17

Kelas kotor:18.00 kg

Ketersediaan: Tersedia

145 Pandangan Mencari Produk Ini

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems drawing image

The XPI-108L Series is a high-performance 108 cc/rev fixed displacement axial piston pump designed for demanding hydraulic systems. Operating at a rated pressure of 38 MPa with peaks up to 42 MPa, this left-hand rotation pump is engineered for durability and efficiency in heavy-duty applications ranging from construction machinery to agricultural equipment.

Seri XPI Pompa Piston Hidrolik Parameter
Perpindahan 32 cc/putaran, 40 cc/putaran, 45 cc/putaran, 50 cc/putaran, 63 cc/putaran, 80 cc/putaran, 25 cc/putaran, 108 cc/putaran
Tekanan Terukur 38 MPa (5511 psi)
Tekanan Maksimum 42 MPa (6091 psi)
Kecepatan Terukur 1600 r/mnt
Kecepatan Maksimum 1900 r/mnt
Putaran L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam)
Bahan Besi Cor
Struktur Pelat Miring
Versi Flens Lubang Pemasangan ISO-4
Tipe Poros H: Spline Persegi Panjang

As a leading large-scale manufacturer of hydraulic solutions, we offer the XPI-108L Series Hydraulic Piston Pump, specifically engineered for high-pressure environments. With a displacement of 108 cc/rev and a maximum speed of 1900 r/min, this pump is ideal for concrete boom pumps, wheel loaders, mini-excavators, and truck-mounted cranes. We provide comprehensive manufacturing services including OEM, private labeling, and custom engineering to meet specific technical requirements. Our factory direct supply ensures competitive wholesale pricing for global markets. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need bulk procurement or specialized customization for material handling and earthmoving equipment, our facility provides reliable support and consistent quality. Join our global distribution network and benefit from our extensive manufacturing expertise in industrial vehicle and agricultural hydraulic systems.
