What is the primary application of the ZT12-OT Joystick 3 Spool Hydraulic Control Valve for Heavy Machinery?

The ZT12-OT Joystick 3 Spool Hydraulic Control Valve for Heavy Machinery is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

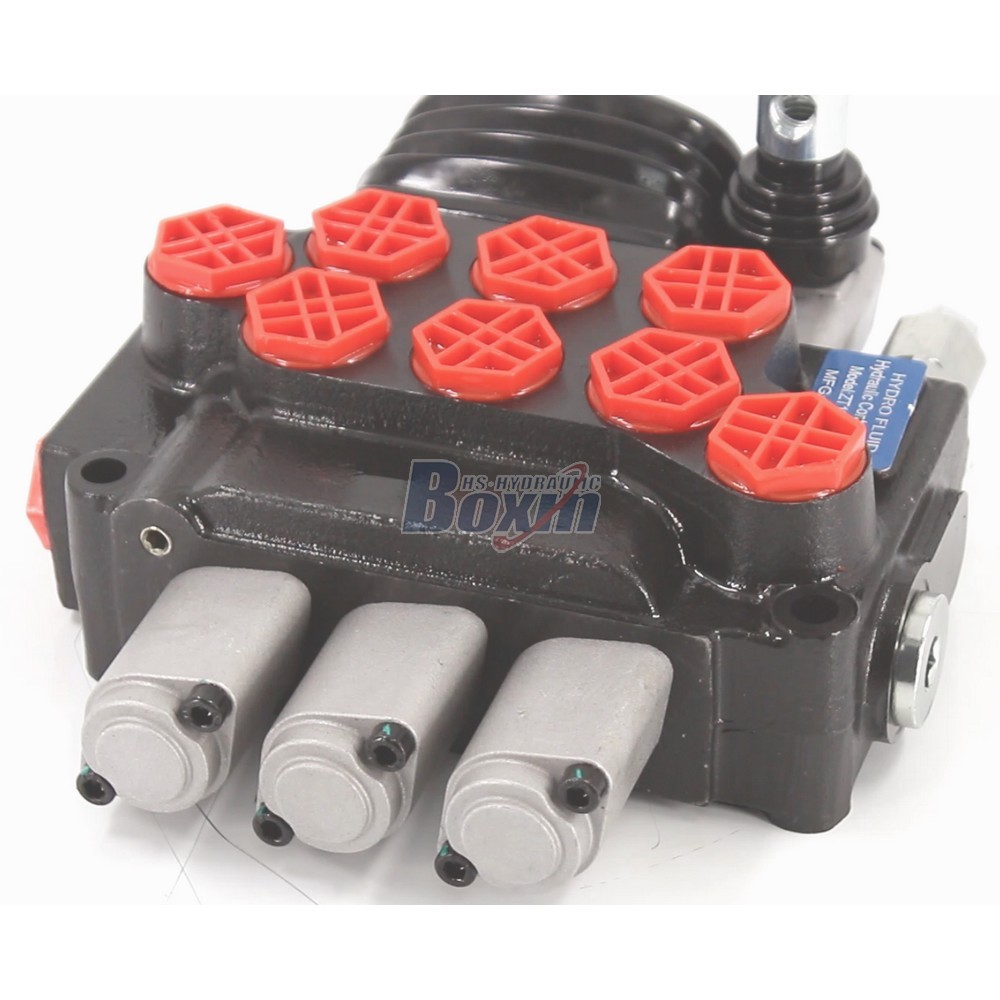

ZT12-OT Joystick 3 Spool Hydraulic Control Valve for Heavy Machinery

Name: ZT12-OT Joystick 3 Spool Hydraulic Control Valve for Heavy Machinery
Brand: Boxinhuasheng
SKU: BXHS-59765
Availability: InStock

Metode Kontrol:Stik Kontrol

Spul:3 Spool

Aliran Terukur:50 L/menit (13,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Kontrol Hidrolik

Seri Produk:Seri ZT12 Katup Kontrol Hidrolik

Ukuran kemasan:27*22*11

Kelas kotor:8.60 kg

Ketersediaan: Tersedia

Deskripsi

ZT12-OT Joystick 3 Spool Hydraulic Control Valve for Heavy Machinery

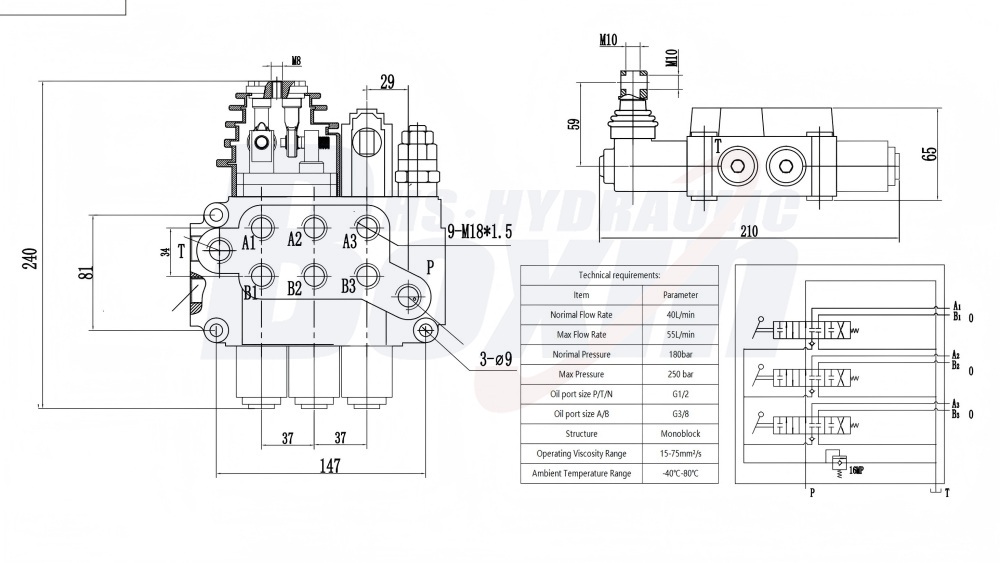

ZT12-OT Joystick 3 Spool Hydraulic Control Valve for Heavy Machinery drawing image

Engineered for heavy machinery, this ZT12-OT 3 spool hydraulic control valve features joystick operation, 50 L/min flow, and 250 bar max pressure. Backed by a 25-year ISO-certified manufacturer, it ensures reliable performance for mini-excavators, skid steers, and agricultural equipment with full OEM support.

Seri ZT12 Katup Kontrol Hidrolik Parameter
Metode Kontrol	Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick
Spul	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Aliran Terukur	50 L/menit (13,2 US gpm)
Tekanan Maksimum	250 bar (3600 psi)
Port Masuk	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Bagian	1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian
Tipe Struktur	Katup monoblok
Kisaran Suhu Sekitar	-40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional	15 - 75 mm²/dt (15 cSt hingga 75 cSt)

**1. Precise 3 Spool Hydraulic Control Valve Design**
- Engineered with a monoblock 3-spool configuration, this unit handles a rated flow of 50 L/min (13.2 US gpm) and withstands max pressure up to 250 bar (3600 psi), ensuring stable power distribution.
- G1/2 inlet/outlet and G3/8 port sizes provide seamless integration into existing hydraulic circuits for compact construction and agricultural vehicles.

**2. Intuitive Joystick Hydraulic Valve Operation**
- Features an ergonomic joystick control method, offering operators precise, proportional command over auxiliary functions, reducing fatigue during extended use in material handling tasks.
- Ideal for applications requiring fine motor control, such as aerial platforms, telehandlers, and wood splitters, enhancing operational safety and efficiency.

**3. Durable ZT12 Series Directional Valve Construction**
- Built to rigorous IATF 16949 standards, each valve undergoes 100% bench testing for pressure, flow, and sealing integrity before shipment, guaranteeing zero-defect performance.
- The robust cast iron body is treated for corrosion resistance, making it a reliable replacement for international brands in harsh environments like earthmoving and industrial vehicle sectors.

**4. Versatile Hydraulic Valve for Mini Excavator Applications**
- Specifically optimized for mini-excavators, skid steer loaders, and backhoe loaders, this valve delivers consistent response times and low internal leakage.
- Compatible with a wide range of mobile hydraulics, including compact wheel loaders and forklifts, providing a cost-effective solution for maintenance and retrofit projects.

**5. Factory Direct Sales & OEM/ODM Available Support**
- Sourced directly from our 68,000㎡ facility with 25+ years of expertise, we offer wholesale direct sales prices and custom solutions like laser logo marking and private labeling.
- With 1.5 million annual capacity and 35+ senior engineers, we support bulk orders and tailored specifications, ensuring fast lead times and dedicated after-sales service for global distributors.
